Products: Systems > Touring > MONARC MLA6: Overview
Touring
3-Way Full Range, Dual 1.4" x Dual 10" x Dual 15", Line...
45Hz - 18kHz  /  90°

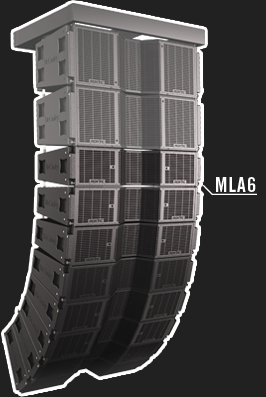

The MLA6 is McCauley Sound's flagship line array system. The MLA6 is a low-profile, axially symmetrical, three-way large-format line array module based on McCauley Sound’s revolutionary MONARC™ line array technology. Engineered to deliver high definition, high SPL sound reinforcement for a broad range of applications, including concert / touring sound and mixed-media corporate events, the MONARC™ MLA6 offers sound designers the ideal tool for creating precision coverage zones of acoustically accurate, tonally superior sound reproduction. Brilliant technologies like the Intercell Summation Aperture™, which creates a perfectly coherent and uniform wide-band wavefront, while reducing distortion to near-zero levels, make the MONARC™ MLA6 the most precise and acoustically transparent large-format line array system on the market. At the same time, MLA6's MONARC™ Integrated Rigging System provides operators with the simplest, most flexible and easiest way to fly or stack a line array the industry has ever know.

The MLA6 is a 3-way full range line array module in a computer optimized enclosure. The MLA6houses twin volumetircally loaded 15" Neodymium cone drivers, twin 10" HX32 Neodymium midrange cone drivers, and twin 2" Neodymium high frequency compression drivers. The enclosure is constructed of durable 12-ply void-free birch laminate, dadoed for strength and durability. All MONARC™ modules ship with an advanced integrated rigging system with all necessary rigging hardware self-contined to the enclosure. This system allows an array to be flown quickly and easily, or in the case where rigging is not approriate, this same rigging system allows the cells to form ground stack arrays. Perforated steel is employed for frontal protection of the loud speaker complement. An integrated castor board package is included to aid transport.

Adaptive Density Inverse Flat Lense
HX32 Honey-Comb Nomex Composite Midrange
InterCell Summation Aperature
Lightwieght Neodymium Complement
Volumetrically Loaded LF Section
Low Profile Cell Design
MONARC Integrated Rigging System
Quick Release Grill
Dual Neutrik NL8 Connectors
Ergonomically-placed handles
Arrayable Pattern
McCauley Performance Class Componentry
Perforated Steel Grill
12-Ply Dadoed Construction
Durable ProCoat Elastomeric Finish

"The enormous response and positive feeback I have recived around our latest product designs has solidified my opinion that McCauley Sound is one of our industry's true standard-bearers for innovative engineering and quality manufa..."

Main P.A.
Amphitheater
Arena
Stadium
General Staging
