Products: Systems > Touring > MONARC MLA2: Overview
Touring
2-Way Full Range, Dual 1" x Dual 8", Line Array
80Hz - 18kHz  /  100°

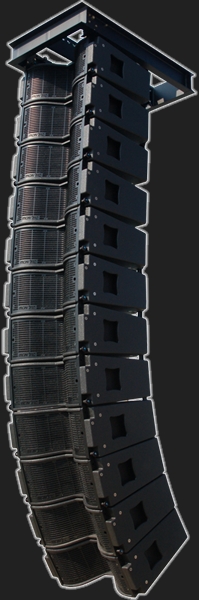

The MLA2 is a low-profile, axisymmetric, two-way mid-size line array module based on McCauley Sound’s revolutionary MONARC™ line array technology. Engineered to deliver high definition, high SPL sound reinforcement for a broad range of applications, including concert / touring sound and mixed-media corporate events, the MONARC™ MLA2 offers sound designers the ideal tool for creating precision coverage zones of acoustically accurate, tonally superior sound reproduction. Brilliant technologies like the Intercell Summation Aperture™, which creates a perfectly coherent and uniform wide-band wavefront, while reducing distortion to near-zero levels, make the MONARC™ MLA2 the most precise and acoustically transparent line array system on the market. At the same time, MLA2’s MONARC™ Integrated Rigging System provides operators with the simplest, most flexible and easiest way to fly or stack a line array the industry has ever know.

The MLA2 is a 2-way full range line array module in a computer optimized enclosure. The MLA2 houses twin 8" HX32 midrange cone drivers, and two high frequency compression drivers. The enclosure is constructed of durable 12-ply void-free birch laminate, dadoed for strength and durability. All MONARC™ modules ship with an advanced integrated rigging system with all necessary rigging hardware self-contined to the enclosure. This system allows an array to be flown quickly and easily, or in the case where rigging is not approriate, this same rigging system allows the cells to form ground stack arrays. Perforated steel is employed for frontal protection of the loud speaker complement. The MCB2 integrated castor board package is necessary to facilitate rigging and to aid transport.

HX32 Honey-Comb Nomex Composite Midrange
InterCell Summation Aperature
Lightwieght Neodymium Complement
Lightweight Design
MONARC Integrated Rigging System
Quick Release Grill
Compact Design
Dual Neutrik NL8 Connectors
High-Rigidity Cone Structures
Ergonomically-placed handles
McCauley Performance Class Componentry
Perforated Steel Grill
12-Ply Dadoed Construction
Durable ProCoat Elastomeric Finish

"I am absolutely, 100% pleased with what I heard from the MLA2! I practically jumped through hoops when I heard it. Based on the physical characteristics I saw regarding what the product features, I knew that it was going to give..."

Honda Center Installs MLA2 Line Arrays and M421 Subwoofers
Anaheim, CA- Honda Center, one of the premier entertainment and sports venues in the United States, recently completed their Grand Terrace Project, a 15,000 square foot indoor-outdoor entertainment space, and n...

Corporate Events
Amphitheater
Arena
General Staging
Live Performance Theater
Mega Church
Main P.A.
Down fills
Side fills
Delay towers


Compatible Products
Comparable Products

Link Line Array Information
Line Array EASE DLLs
MLA2 Cutsheet
