Products: Systems > Touring > M421: Overview
Touring
Subwoofer, Quad 21"
20Hz - 85Hz

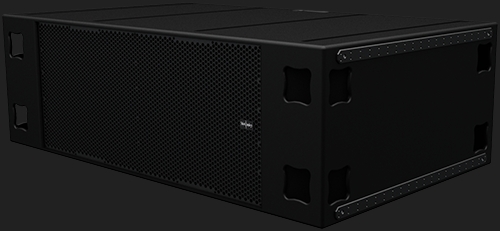

The M421 sets a new standard for low distortion, high impact bass reproduction. The M421 has a continuous power handling in excess of 12,000 W and measured peak output of 143 dBSPL at 4 m ground-plane, within its operating band. With a well-shaped response from 20 to 100Hz and a total weight under 500 lbs, the M421 delivers an unprecedented level of low frequency energy for its size. The revolutionary design features four, independently powered, 21 in. long excursion neodymium motor transducers. Specially designed 6.0 in. voice coils exhibit near linear force factor (Bl) through the entire range of cone motion. The drivers are configured in an isobaric assembly and coupled to an FEA optimized acoustic transformer. With integrated handles, casters, skids, travel dolly, and optional fly ware, the M421 is the most versatile and powerful sound reinforcement subwoofer to date.

The enclosure is constructed of multi-ply void-free birch hardwood plywood and is coated with a weather and wear resistant ProCoat™ polyurethane hybrid finish. Components in the front of the enclosure are protected by a flat grill made from perforated 11 gauge steel that is coated with heat cured epoxy powder. All rigging and hardware is weather protected with a heat cured epoxy powder coat finish.

"“What makes the M421 special is that it adds a powerful bone-crushing low end that I have never heard before from any sub in all my 30 years of doing concert audio.”"

Main P.A.
Amphitheater
Arena
Dance / DJ Club
Distributed/Zoned Outdoor
General Staging


Compatible Products
M88
Comparable Products

M421 Dimensional Drawing
M421 Dimensional Drawing
M421 Cutsheet
