Products: Systems > Installation > ID1.112-SB: Overview
Installation
Subwoofer, Single 12"
50Hz - 800Hz

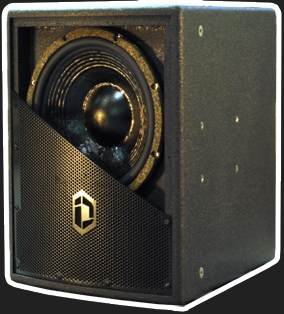

The ID1.112-SB is a sub woofer engineered for permanent installation in high output applications.

The ID2.112-SB is ideal for use as a sub woofer for the primary sound reinforcement system in smaller venues such as houses of worship, theaters & auditoriums, Gymnasiums, Night clubs and live venue music venues. It is also recommended for high impact lounges and bars where music is intended to dominate the foreground.

The ID1.112-SB features a single 12" cone driver and is designed to combine with other iDESIGN modules with the ID1 designation to build muti-way arrays. With appropriate hardware, iD1 modules can also be incorporated with ID2, ID3, and ID4 loudspeakers to construct larger muti-tiered arrays.

The iDESIGN family offers the installer an easy to understand but vast selection of configuration options.

iDesign modules with rotatable waveguides are available in five coverage patterns, offering sound designers the freedom to combine different patterns to form arrays and produce idealized coverage zones. iDESIGN’s unusually steep trapezoidal geometry allows wider splay angles, in a tighter footprint in arrayed applications.

All iDESIGN modules offer built-in support for a wealth of rigging and mounting options, including u-brackets, array frames, 3/8” pick points for eyebolt suspension, and Omni-Mount compatible bolt patterns.

External powering connections are made by terminal strip; every panel features a second set of connections for passing through signal to an adjoining module

All iDESIGN modules are constructed of high-grade, void-free 5/8th 12-ply Finland birch sealed in our weatherproof ProCoat elastomeric coating. Curved, perforated steel grills protect the system while acoustically transparent foam protects and conceals components from view. All hardware is either stainless steel or is fully powder-coated to resist corrosion. Standard colors are black or white, while custom colors are accommodated by special order.

The ID1.112-SB offers Omni-Mount compatible taps on the top and bottom of the module as wells as both sides. Fourteen reinforced 3/8"-16 pick points are distributed across five faces to accommodate cable hangs of nearly any design. A wide range of array frames, developed specifically for iDESIGN, are available to facilitate arraying and suspending multiple modules as a single cluster, while both vertical and horizontal U-bracket hardware is tailored to each module for single-unit wall and ceiling mount installations.

Compact Design
Build Custom Coverage
14 3/8th Inch Eyebolt Suspension Points
Horizontal U-Bracket Hardware Available
Omni Mount Ready
Discrete Channels of Power & Processing
Modular Building Blocks
Precision Array Frames
Vertical U-Brackets w/ Articulation
Curved Aesthetic
High-Rigidity Cone Structures
Optional White Finish
Dual Terminal-Strip Connectors
McCauley Performance Class Componentry
Perforated Steel Grill
12-Ply Dadoed Construction
Durable ProCoat Elastomeric Finish

"The coverage is so even and you can tell people are really getting into their work outs. And what’s more, you can’t hear the music from the aerobics studio anywhere else in the club. It’s great."

Distributed Fills
Dance / DJ Club
Live Music Club
Night Club (Multi-purpose)
Large Church
Mega Church
Main P.A.
