Products: Systems > Installation > ID1.108-26: Overview
Installation
2-Way Full Range, 1" x 8"
300W  /  60Hz - 18kHz  /  120° x 60°

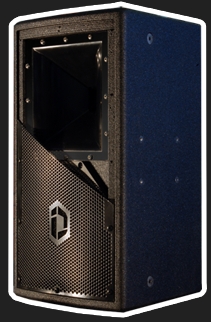

The ID1.108-26 is an ultra-compact, modular 2-way loudspeaker engineered for permanent installation in high output applications.


The ID1.108-26 is ideal for use as primary sound reinforcement in smaller venues such as houses of worship, theaters & auditoriums, or in restaurants, lounges and bars where music is intended to dominate the foreground. Employed as part of an array, the ID1.108-26 will interoperate with other iDESIGN modules to build extended coverage patterns and cover larger audiences. The ID1.108-26 also functions as elements in distributed systems for larger venues like stadiums and arenas, while its narrow profile makes it especially appropriate for delay rings and under-balcony applications.

The ID1.108-26 features a single 8" cone driver and a 1.75" diaphragm compression driver mounted to a 1” exit user-rotatable 120x60 constant directivity waveguide.

There are two powering modes available for the ID1.108-26. Bi-amp connections are made by terminal strip; every panel features a second set of connections for passing signal through to another module. A passive crossover with a 70 volt option can be added to accommodate full-range signal.

All iDESIGN modules are constructed of high-grade, void-free 5/8th 12-ply Finland birch sealed in our weatherproof ProCoat elastomeric coating. Curved, perforated steel grills protect the system while acoustically transparent foam protects and conceals components from view. All hardware is either stainless steel or is fully powder-coated to resist corrosion. Standard colors are black or white, while custom colors are accommodated by special order.

The ID1.108-26 offers Omni-Mount compatible taps on the top and bottom of the module as wells as both sides. 12 reinforced 3/8"-16 pick points are distributed across five faces to accommodate cable hangs of nearly any design. A wide range of array frames, developed specifically for iDESIGN, are available to facilitate arraying and suspending multiple modules as a single cluster, while both vertical and horizontal U-bracket hardware is tailored to each module for single-unit wall and ceiling mount installations.

12 3/8th Inch Eyebolt Suspension Points
Resonance-Neutral Dampening
Build Custom Coverage
Rotatable Waveguide
Horizontal U-Bracket Hardware Available
Omni Mount Ready
Discrete Channels of Power & Processing
Modular Building Blocks
Precision Array Frames
Vertical U-Brackets w/ Articulation
Curved Aesthetic
High-Rigidity Cone Structures
Arrayable Pattern
Optimized for Intelligibility
Optional White Finish
Dual Terminal-Strip Connectors
Perforated Steel Grill
12-Ply Dadoed Construction
Durable ProCoat Elastomeric Finish

"McCauley Sound had the best price for sound reinforcement that was going to be a good fit for the size of the facility. Additionally, because they were able to hear it, the pastoral staff was very comfortable utilizing their budg..."

Underbalcony
Arena
General Staging
Large Church
Live Performance Theater
Mega Church
Delay rings
Main P.A.
